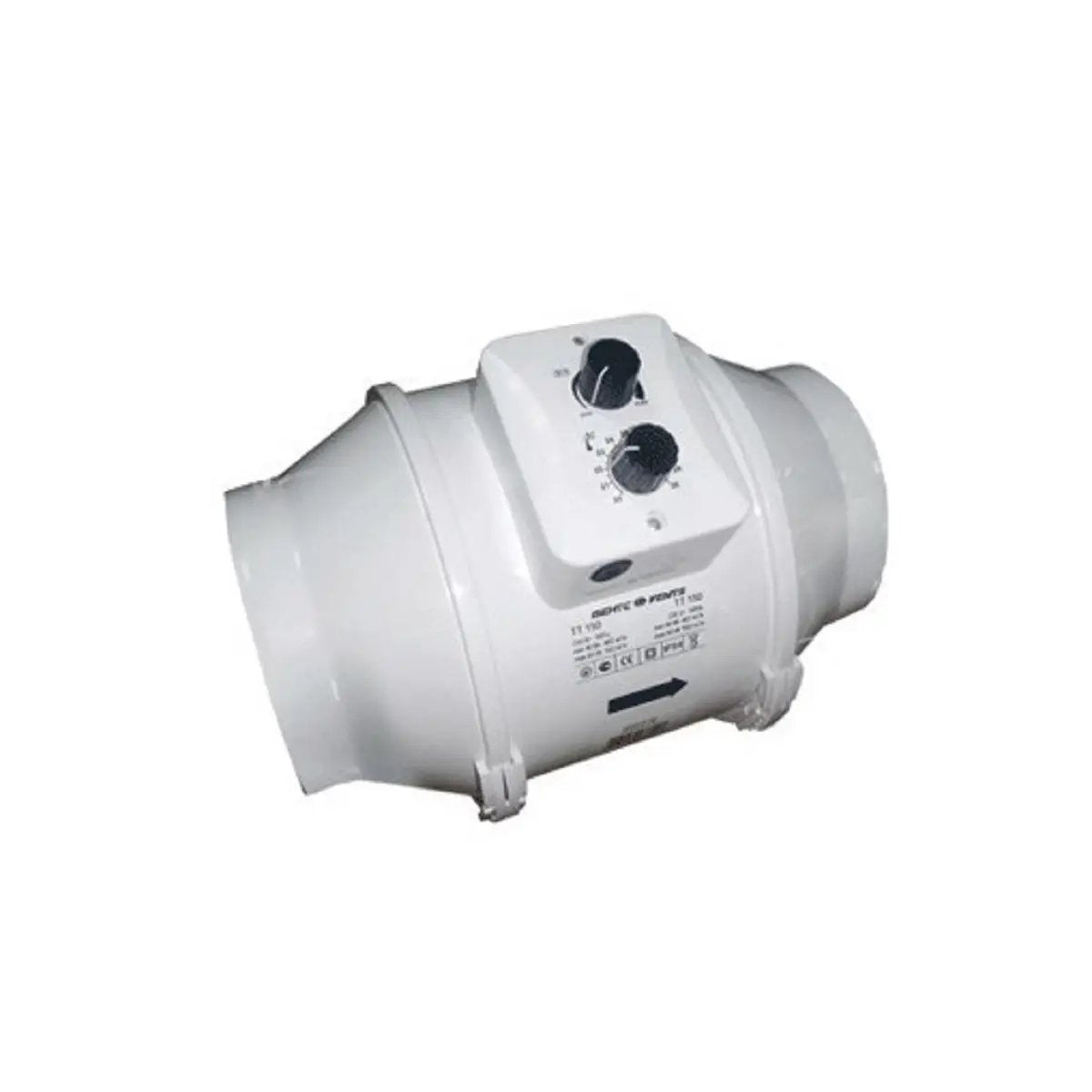

Vents TT 150 UN - (520m3/h) with thermostat - 150mm

Characteristics of the extractor

This extractor TT-150 UN has a controller that allows you to adjust its air flow capacity according to the indoor temperature. It is designed for air supply or extraction in all domestic premises, kitchen, bathroom, restaurant, horticultural greenhouse... This extractor is intended for inline installation in round ventilation ducts with a diameter of 150mm and its maximum air flow is 520m3/h.

The speed controller will be useful for adjusting its air flow from 0 to 100% while its thermostat will allow for setting a temperature between 20 and 30°C. The extractor will then activate at its maximum chosen extraction capacity when the temperature exceeds the starting instructions.

Its ball bearing mounted motor is designed to operate for at least 40,000 hours. It is equipped with thermal protection against overheating. Its plastic casing makes it perfectly resistant to corrosion. It has a waterproof terminal box that will protect its electrical wiring, making its use possible even in humid environments. The temperature probe measures 4 meters.

This extractor is sold pre-wired IEC male, plan to purchase a female IEC.

• Dimensions: Length 24.6cm - Width 16.7cm - Height 19cm
• Flange: 150mm
• Max flow rate: 520m3/h
• Consumption: 23W - 37W
• Tension: 220-240V
• Weight: 3.1kg
